Navigating the Lingo: What Do GVM, ATM, GCM, and Tow Ball Mass Really Mean for Your Caravan Trip?
Confused by caravan weight ratings? Understanding GVM, ATM, GCM, and tow ball mass is crucial for safe and legal caravanning in Australia. This guide breaks down these essential terms, helping you stay compliant and enjoy your travels worry-free.
The dream of the Big Lap is a classic Aussie ambition. Picture yourselves winding down dusty tracks, parking up by a billabong, and soaking in the vast beauty of our incredible country. But before you hit the road, there’s a vital piece of the puzzle that often trips up even the most seasoned travellers: understanding your vehicle and caravan’s weight ratings.
These aren’t just technical jargon designed to confuse; they are the bedrock of safety and legal compliance on Australian roads. Get them wrong, and you could be facing fines, voided insurance, or worse, an unsafe towing situation. Let’s shed some light on what GVM, ATM, GCM, and tow ball mass actually mean, and how you can keep track of it all.
GVM, ATM, GCM: The Big Three Explained
Think of these as the three fundamental weight limits you need to be aware of for both your tow vehicle and your caravan.
What is GVM (Gross Vehicle Mass)?
GVM stands for Gross Vehicle Mass. This is the maximum allowable loaded mass of your vehicle (including the chassis, body, engine, fuel, fluids, accessories, and importantly, the ball load from your caravan).
Essentially, it’s the absolute heaviest your car can be, fully loaded with everything and everyone inside, plus the weight pushing down on its tow bar. Every vehicle has a GVM specified by the manufacturer. Exceeding this limit is illegal and dangerous, compromising your vehicle’s braking, steering, and suspension.
What is ATM (Aggregate Trailer Mass)?
ATM stands for Aggregate Trailer Mass. For your caravan, this is the maximum allowable loaded mass of the trailer itself. This includes the caravan’s tare (empty) weight, plus all the gear you load into it, and any accessories. It’s the total weight of the trailer as if it were detached from your vehicle.
Just like your car, your caravan has a manufacturer-specified ATM. It’s crucial to know this figure and ensure your loaded caravan never exceeds it.
What is GCM (Gross Combined Mass)?
GCM stands for Gross Combined Mass. This is the maximum allowable loaded mass of your entire towing combination – your vehicle and your caravan together.
This is a critical figure because it takes into account the combined weight of both your tow vehicle and your trailer. Even if your car is under its GVM and your caravan is under its ATM individually, their combined weight could exceed the GCM. This would mean your towing combination is overloaded, regardless of individual limits.
Tow Ball Mass: The Link Between Your Car and Caravan
What is Tow Ball Mass (or Ball Load)?
Tow Ball Mass, often referred to as Ball Load or TBM, is the downward force exerted by the caravan’s hitch onto the tow ball of your vehicle. It’s a crucial part of the overall weight equation.
There are three key figures to consider for tow ball mass:
- Your Caravan’s Maximum Tow Ball Mass: This is specified by the caravan manufacturer and indicates the heaviest allowable downward force the caravan’s hitch can place on the tow ball.
- Your Vehicle’s Maximum Tow Ball Mass: Your vehicle’s tow bar and tow bar fitting will have a maximum rated tow ball mass. This is often listed on a compliance plate on the tow bar itself.
- Actual Measured Tow Ball Mass: This is the actual weight the caravan is putting on your tow ball when loaded and hitched up.
Ideally, the tow ball mass should be between 7% and 15% of the caravan’s loaded weight. This ensures stability. Too little ball load can lead to dangerous sway, while too much can overload your tow vehicle’s rear suspension and steering.
The Interplay: Why These Weights Matter Together
It’s easy to get these terms mixed up, but understanding how they interact is key to safe towing.
| Term | What it Limits | Applies To | Key Consideration |
|---|---|---|---|
| GVM (Gross Vehicle Mass) | Your Tow Vehicle Fully Loaded | Tow Vehicle | Includes passengers, fuel, accessories, and the ball load from the caravan. |
| ATM (Aggregate Trailer Mass) | Your Caravan Fully Loaded | Caravan | The maximum weight of the caravan itself, including all its contents. |
| GCM (Gross Combined Mass) | Your Tow Vehicle + Caravan Combined | Tow Vehicle & Caravan | The absolute heaviest your car and caravan can be together. |
| Tow Ball Mass | Downward force on the tow ball | Tow Vehicle & Caravan | Affects vehicle stability and rear suspension load. Typically 7-15% of caravan ATM. |
The golden rule: All of these figures must be complied with. You can have a car under its GVM and a caravan under its ATM, but if their combined weight exceeds the GCM, you’re still overloaded. Similarly, if your tow ball mass is too high, it can make your tow vehicle’s GVM the limiting factor, even if the caravan itself is within its ATM.
Practical Tips for Staying Compliant
- Know Your Numbers: Find the compliance plates on both your tow vehicle and your caravan. These will list your GVM, ATM, and GCM. Your tow bar will also have its own rating.

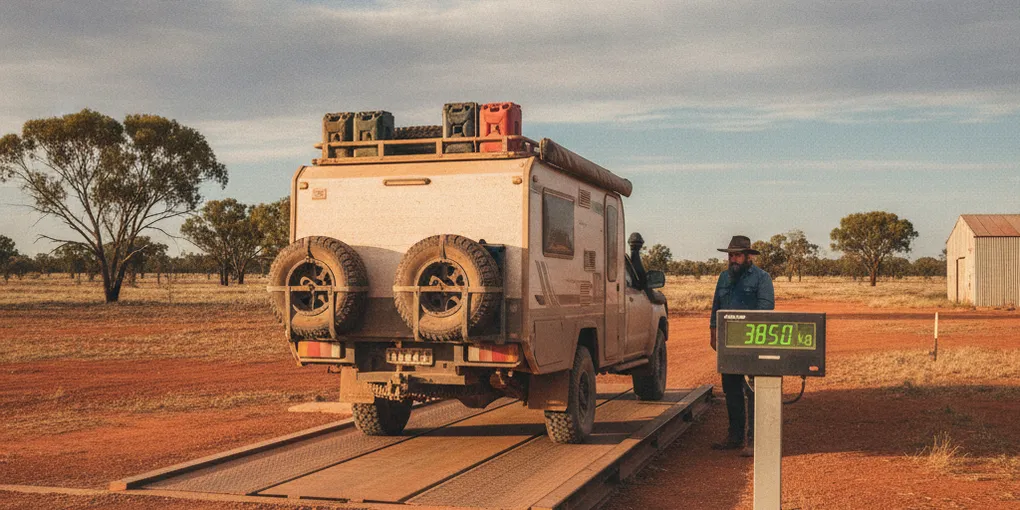

- Weighing is Essential: Don’t just guess. Visit a weighbridge (many local councils and truck stops have them) to get accurate readings of your vehicle’s weight, your caravan’s weight, and ideally, the weight on your tow ball.
- Load Smart: Distribute weight evenly within your caravan, placing heavier items over the axles. Avoid overloading the tow vehicle with unnecessary gear.
- Check Your Tow Ball Mass: Use a tow ball weight scale to measure the actual downward force. Adjust your caravan’s loading if necessary.
- Seek Expert Advice: If you’re unsure, consult a qualified mechanic or a caravanning specialist.
The Lap Club Weight Manager: Your Digital Companion for Peace of Mind
Keeping track of all these weights, especially when you’re packing and unpacking for different legs of your journey, can be a real headache. This is where tools designed to simplify the process become invaluable.
At The Lap Club, we understand the challenges of life on the road. That’s why we’re building the ultimate companion for Australian travellers. We encourage you to join the waitlist at https://lapclub.com.au to be among the first to experience our innovative solutions.
Specifically, our Lap Club Weight Manager (available via https://lapclub.com.au/weights) is designed to take the guesswork out of compliance. You can input your vehicle and caravan’s specifications, log your weighbridge results, and track your current loaded weights against your GVM, ATM, and GCM limits. It provides clear, visual feedback, helping you make informed decisions about your load. This means you can focus on the adventure, not the anxiety of potential legal breaches.
Navigating the world of caravan weights might seem daunting at first, but with a little knowledge and the right tools, it becomes second nature. Being aware of your GVM, ATM, GCM, and tow ball mass is fundamental to safe and legal caravanning. For more tips and resources to help you plan your Big Lap, be sure to explore the rest of our blog at https://lapclub.com.au/blog.
Frequently Asked Questions (FAQ)
How do I find my caravan’s GVM and ATM?
Your caravan’s Gross Vehicle Mass (GVM) and Aggregate Trailer Mass (ATM) will be listed on a compliance plate, usually located on the drawbar, chassis, or inside a cupboard. Always refer to this plate for the official figures.
Is GCM more important than GVM and ATM?
All three (GVM, ATM, and GCM) are equally important for legal and safe towing. You must comply with all of them. Your GVM limits your loaded tow vehicle, your ATM limits your loaded caravan, and your GCM limits the total combined weight of both.
What is the best app for traveling Australia?
Many apps can enhance your Australian travels, from navigation and campsite finders to safety alerts and community forums. While we’re focused on building a comprehensive solution, apps that offer detailed weight management, like the upcoming Lap Club Weight Manager, are crucial for compliant caravanning. We invite you to join the waitlist at https://lapclub.com.au to be part of this exciting development.
How much tow ball mass should I have?
Generally, your tow ball mass should be between 7% and 15% of your caravan’s loaded weight. This helps ensure stability and prevents dangerous swaying. Always check your caravan manufacturer’s and tow vehicle manufacturer’s specifications for the exact recommended range.
