Caravan Weights Explained for Your Big Lap: GVM, ATM, GCM & Tow Ball Mass

Understanding your caravan’s weight limits is crucial for safe and legal travelling around Australia. This guide breaks down GVM, ATM, GCM, and tow ball mass to help you stay compliant on your Big Lap.

So, you’re dreaming of that epic Australian caravan adventure, the Big Lap, right? It’s a fantastic dream, and one that millions of Aussies pursue every year. But before you pack the esky and hitch up the rig, there’s a less glamorous, but incredibly important, aspect of caravanning to get your head around: weights.

We’re talking about Gross Vehicle Mass (GVM), Aggregate Trailer Mass (ATM), Gross Combination Mass (GCM), and Tow Ball Mass. These aren’t just technical jargon; they are your golden tickets to staying safe, legal, and avoiding hefty fines on your travels. Getting these wrong can lead to anything from a dangerous driving experience to major insurance claim issues and even legal trouble.

At The Lap Club, we’re all about making your Big Lap as smooth and stress-free as possible. That’s why we want to help you demystify these essential weight figures.

What Does Tare Weight Mean for Your Caravan?

Before we dive into the ‘gross’ weights, let’s quickly touch on Tare Weight. This is the weight of your caravan when it leaves the factory, completely empty. Think of it as the caravan’s “birthday suit” weight – no water in the tanks, no gas in the bottles, no clothes in the cupboards, and no food in the fridge. It’s the starting point for all your calculations.

GVM vs. ATM: The Crucial Difference for Your Caravan

This is where things can get a little confusing for newcomers. Let’s break them down.

GVM: Your Caravan’s Maximum Operating Weight

Gross Vehicle Mass (GVM) refers to the maximum loaded weight of your caravan, including all its accessories, fluids, and cargo, as specified by the manufacturer. It’s essentially the legal limit for how much your caravan can weigh when it’s fully loaded and ready to roll.

Think of it like this: If you try to put more than the GVM onto your caravan (by adding heavy items, water, etc.), you’re overloading it. This can affect its handling, braking, and overall safety.

  • Where to find it: Your caravan’s compliance plate will have the GVM listed. It’s often found on the chassis or drawbar.

ATM: Your Caravan’s Maximum Loaded Road Weight

Aggregate Trailer Mass (ATM) is the maximum loaded weight of your caravan when it is detached from the towing vehicle. This includes the caravan itself, all its contents, and any accessories. Essentially, it’s the total weight the caravan’s chassis, suspension, and brakes are designed to handle while it’s sitting on the road.

Key point: The ATM is often higher than the GVM. This is because when the caravan is attached to the tow vehicle, some of the weight is supported by the tow ball.

  • Where to find it: This should also be on your caravan’s compliance plate.

Here’s a simple analogy: Imagine a suitcase. The Tare Weight is the suitcase when empty. The GVM is the maximum weight the suitcase itself can safely handle before its seams start to split or its handle breaks. The ATM is the total weight the suitcase could be if you were to lift it straight up off the ground without it being attached to anything else (which is a bit like the weight the trailer’s wheels and suspension must support).

Understanding the Relationship: GVM vs. ATM

The crucial thing to remember is that your caravan must not exceed either its GVM or its ATM. While ATM is the maximum weight when unhitched, GVM is the maximum weight it can operate at when hitched. You need to be aware of both. If your caravan’s ATM is, say, 3000kg, and its GVM is 2900kg, then 2900kg is your absolute maximum loaded weight, even though the ATM allows for a little more when detached. Always stick to the lower of the two figures for your loaded weight.

GCM: The Big Picture for Your Whole Rig

Gross Combination Mass (GCM) is the maximum total weight of your fully loaded towing vehicle and your fully loaded caravan combined. This is a critical figure for your entire setup.

Why is it important? If the combined weight of your vehicle and caravan exceeds the GCM, you’re overloading the combination. This can lead to a dangerous driving experience, affecting acceleration, braking, and steering. It also puts excessive strain on both your vehicle and caravan components.

  • Where to find it: This figure is specified by the manufacturer of your towing vehicle. Check your vehicle’s owner’s manual or compliance plate.

Crucially: Your GCM is often the limiting factor for your towing setup. You might have a tow vehicle that can technically tow a heavy caravan, and a caravan that has a high ATM, but if the combined weight exceeds the GCM, you’re overweight.

Tow Ball Mass: The Downward Force on Your Hitch

Tow Ball Mass (TBM), also known as Ball Weight, is the downward force that your caravan exerts on the tow ball of your vehicle. It’s essentially how much weight your caravan is pushing down on the hitch.

  • Why it matters:

    • Vehicle Stability: The correct TBM is vital for stability. Too little, and your caravan can sway dangerously (known as ‘tail wagging the dog’). Too much, and it can overload your tow vehicle’s rear suspension and steering.
    • Tow Vehicle Limits: Your tow vehicle has a maximum tow ball download limit, which is often listed on the tow bar itself and in the vehicle’s manual.
    • Caravan Design: The caravan manufacturer also specifies a recommended TBM range to ensure proper weight distribution and safe towing.

  • Where to find it:

    • Caravan: Usually stated on the compliance plate, often as a percentage of the caravan’s ATM (e.g., 10-15%).
    • Tow Vehicle: On the tow bar and in the owner’s manual.

General Rule: Aim for a TBM of around 10-15% of your caravan’s ATM. This usually provides the best stability. Always check your specific vehicle and caravan recommendations.

Putting It All Together: A Weight Calculation Example

Let’s say you have:

  • Towing Vehicle: GVM 3500kg, GCM 6000kg, Max Tow Ball Download 150kg
  • Caravan: Tare Weight 2200kg, GVM 2700kg, ATM 3000kg, Recommended TBM 10-15% of ATM

Scenario: You’ve packed for your trip.

  1. Caravan Loaded Weight: You estimate your loaded caravan is 2600kg.

    • Is it under GVM (2700kg)? Yes.
    • Is it under ATM (3000kg)? Yes.
    • Tow Ball Mass Check: If your loaded caravan is 2600kg, aiming for 10-15% means a TBM of 260kg to 390kg. This is problematic because your tow vehicle’s maximum download is 150kg. You’ll need to adjust your loading to reduce the TBM, or your vehicle may not be suitable for such a heavy van. This highlights the importance of understanding the interaction! Let’s assume you managed to load it so the TBM is exactly 150kg.

  2. Combined Rig Weight: Your towing vehicle weighs 2500kg (fully loaded with gear and passengers). Your loaded caravan is 2600kg.

    • Total Weight: 2500kg (vehicle) + 2600kg (caravan) = 5100kg.
    • Is this under your GCM (6000kg)? Yes.

In this example, provided you managed to keep your TBM at 150kg or less, your rig is legally compliant with these weights. However, if your loaded caravan was 2900kg (still under its GVM/ATM), the combined weight would be 2500kg + 2900kg = 5400kg, still under GCM, but the TBM might become an issue. If your loaded caravan reached 3100kg (over its GVM/ATM), you’d be in trouble.

The Importance of Accurate Weighing

These figures are maximums. The reality is that most caravanners underestimate how much weight they carry. Water tanks, food, clothes, tools, annexes, swags, bikes, kayaks – it all adds up surprisingly quickly!

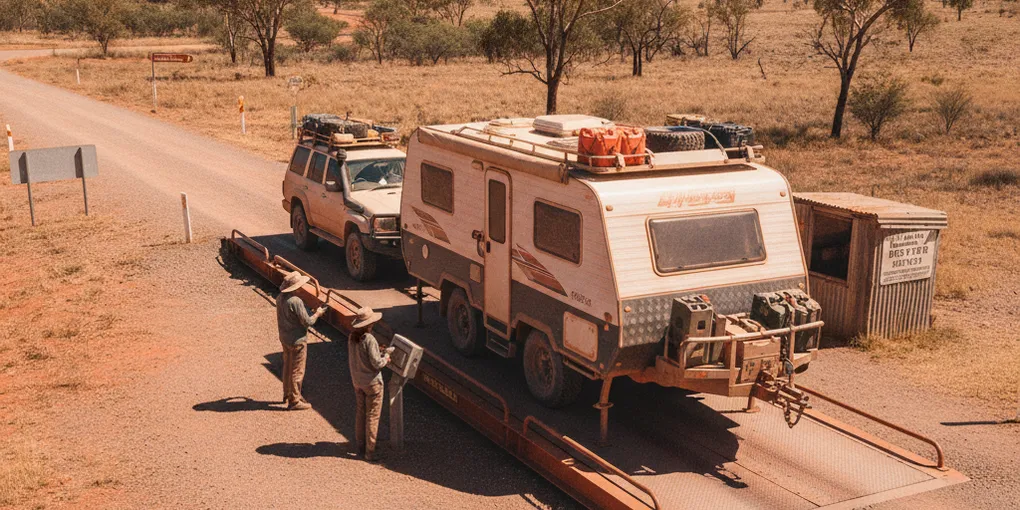

The best way to ensure you’re compliant is to get your rig weighed at a weighbridge. This is especially important after loading up for a trip and before you hit the road.

Stay Compliant with The Lap Club Weight Manager

Navigating these weights can feel overwhelming, especially when you’re excited about getting out there. That’s where The Lap Club Weight Manager comes in. It’s designed specifically for Australian caravanners to help you easily track and manage your GVM, ATM, GCM, and Tow Ball Mass. By understanding your vehicle and caravan’s specifications and logging your loaded weights, you can travel with confidence, knowing you’re safe and legal. This is a vital tool for any serious Big Lapper.

You can learn more about how The Lap Club can help you manage your weights and all aspects of your Australian travels at https://lapclub.com.au. While the app is currently in waitlist mode, signing up for the waitlist at https://lapclub.com.au is the best way to be notified when it’s ready to roll.

Your Essential Australian Caravan Weight Checklist

  • Know your vehicle’s GVM, GCM, and Tow Ball Download limit.
  • Know your caravan’s Tare Weight, GVM, ATM, and recommended Tow Ball Mass range.
  • Always calculate your loaded weights.
  • Get your rig weighed regularly at a weighbridge.
  • Distribute your load correctly to achieve the recommended Tow Ball Mass.
  • Never exceed your vehicle’s GCM.

Understanding and adhering to these weight limits is not just about avoiding fines; it’s about ensuring your safety, the safety of others on the road, and the longevity of your caravan and vehicle. Happy and safe travelling!

For more essential tips for your Big Lap journey, check out the rest of our blog at https://lapclub.com.au/blog.

Frequently Asked Questions (FAQ)

What is the most important weight to check on a caravan?

The most important weights to check are your caravan’s GVM (Gross Vehicle Mass) and ATM (Aggregate Trailer Mass), and your towing vehicle’s GCM (Gross Combination Mass). You must ensure your loaded caravan does not exceed its GVM or ATM, and that the combined weight of your loaded vehicle and caravan does not exceed the vehicle’s GCM.

How do I check if my caravan is overweight?

The best way is to load your caravan as you would for a trip, including all water, food, clothes, and gear. Then, take your entire rig (towing vehicle and caravan connected) to a certified weighbridge. This will give you the actual loaded weights, allowing you to compare them against your vehicle and caravan’s GVM, ATM, and GCM specifications.

What is the best app for traveling Australia with a caravan?

For comprehensive trip planning, community advice, and managing crucial aspects like caravan weights, The Lap Club app is being developed to be an invaluable resource. While currently in waitlist mode, it aims to provide tools and information specifically tailored for Australian caravanners undertaking a Big Lap. You can join the waitlist at https://lapclub.com.au.

Does tow ball mass affect my caravan’s GVM?

No, your tow ball mass (TBM) does not directly affect your caravan’s GVM or ATM. However, the TBM is a downward force on your vehicle’s hitch, and it contributes to the overall weight being carried by your towing vehicle’s rear axle. You must ensure the TBM is within the limits specified by both your caravan manufacturer and your towing vehicle manufacturer.
