Understanding Your Caravan’s Weight Limits: A Crucial Guide for Australian Big Lappers
Navigating the world of caravan weights can feel like deciphering a secret code, but understanding GVM, ATM, GCM, and tow ball mass is absolutely critical for safe and legal caravanning in Australia. Get these wrong, and you’re not just risking fines, but potentially putting yourself and others in danger on our vast and varied roads.
This isn’t just about avoiding a roadside weigh-in; it’s about ensuring your rig handles predictably, your vehicle isn’t overloaded, and your adventures are stress-free. Let’s break down these often-confusing terms so you can hit the road with confidence.
What is Tare Weight? Your Caravan’s Empty Shed
Before we get into the limits, let’s define the starting point: Tare Weight. This is the weight of your caravan as it leaves the factory, completely empty. Think of it as the caravan’s “kerb weight” – no gas bottles, no water, no accessories, no luggage. It’s important to note that Tare Weight can vary slightly between identical models due to manufacturing tolerances. You’ll usually find this listed on the compliance plate or in the manufacturer’s documentation.
GVM vs ATM: Two Numbers That Define Your Caravan’s Load Capacity
These two acronyms are probably the most important you’ll encounter when it comes to your caravan’s individual weight limits. They dictate how much you can legally load into and onto your caravan.
Gross Vehicle Mass (GVM): How Much Your Caravan Can Weigh Loaded
Gross Vehicle Mass (GVM) is the maximum weight your caravan is designed to carry, including everything you put in it. This includes:
- Water in tanks
- Gas bottles
- Food and drinks
- Clothes and personal items
- Annexes and camping gear
- Any modifications or accessories fitted
Your caravan’s GVM will be clearly stated on its compliance plate, usually alongside the Tare Weight and Aggregate Trailer Mass (ATM). It’s vital to stay under this GVM at all times.
Aggregate Trailer Mass (ATM): How Much Your Caravan and Its Contents Can Weigh
Aggregate Trailer Mass (ATM) is the maximum loaded weight of your caravan when it is not attached to a vehicle. Think of it as the maximum weight your caravan can be if it were sitting on its own wheels without being towed. For most practical purposes, especially when dealing with official weighbridges, the ATM is the most relevant figure for your caravan’s loaded weight.
Often, a caravan’s ATM is the same as its GVM. However, there can be instances where they differ, so always check your caravan’s compliance plate. The critical takeaway is that you must never exceed the ATM.
GCM: The Combined Might of Your Car and Caravan
This is where the towing vehicle comes into play. Gross Combined Mass (GCM) is the maximum legal weight of your towing vehicle and your caravan combined, including all their occupants and cargo.
This figure is crucial because it limits the total weight you can legally tow. If your GCM is exceeded, it’s not just your caravan that’s overloaded, but your entire rig. Your vehicle’s manufacturer will specify its GCM. It’s often higher than the sum of your vehicle’s GVM and your caravan’s ATM. This difference accounts for the fact that the caravan’s weight is distributed between the trailer’s axles and the tow ball.
Why GCM Matters: The Big Picture of Your Rig
When you add up your vehicle’s GVM, your caravan’s ATM, and the weight of your tow ball download, you must ensure the total is less than or equal to your vehicle’s GCM.
Here’s a simplified way to think about it:
- Vehicle GVM: Max weight of your car alone.
- Caravan ATM: Max weight of your caravan alone.
- Tow Ball Download: Weight your caravan puts on your tow ball (usually 10-15% of caravan’s ATM).
- GCM: Max legal combined weight of car + caravan.
Formula to Remember:
Vehicle GVM + Caravan ATM + Tow Ball Download <= Vehicle GCM
If your calculation exceeds the GCM, you need to reduce the weight of either your vehicle or your caravan (or both). This might mean leaving some gear behind or upgrading your towing vehicle.
Tow Ball Mass (TBM): The Downward Force on Your Hitch
Tow Ball Mass (TBM), also known as Ball Weight, is the downward force your caravan exerts on the tow ball of your vehicle. This is a crucial factor for vehicle stability and handling.
- Typical TBM: Generally, TBM is recommended to be between 10% and 15% of the caravan’s ATM. Manufacturers will specify a minimum and maximum TBM for their vehicles and caravans.
- Impact on Towing: Too little TBM can cause your caravan to sway dangerously. Too much TBM can overload your vehicle’s rear suspension and tow bar, affecting steering and braking.
Always check the specifications for both your caravan and your towing vehicle regarding TBM. You can measure your TBM using a ball weight scale.
A Practical Comparison: Weight Specs Explained
To help visualise, let’s consider a hypothetical scenario for a typical Australian family setup:
| Specification | Vehicle (e.g., 4WD Ute) | Caravan (e.g., Family Tourer) | Combined Rig |
|---|---|---|---|
| Tare Weight | 2,200 kg | 2,500 kg | N/A |
| GVM | 3,500 kg | 3,500 kg | N/A |
| ATM | N/A | 3,500 kg | N/A |
| GCM | 7,000 kg | N/A | 7,000 kg |
| Tow Ball Mass (TBM) | Min 50kg, Max 350kg | 10-15% of ATM (350-525 kg) | N/A |
Let’s say you load up:
- Vehicle: Packed with family, gear, roof rack = 3,400 kg (under GVM)
- Caravan: Packed with water, food, annex, gear = 3,300 kg (under ATM)
- TBM: Measured at 400 kg (within caravan specs, but check vehicle’s max TBM)
Now, let’s check the GCM:
Vehicle Loaded Weight (3,400 kg) + Caravan Loaded Weight (3,300 kg) = 6,700 kg
This 6,700 kg is less than the vehicle’s GCM of 7,000 kg. You’re also within your vehicle’s GVM and your caravan’s ATM, and assuming your vehicle can handle a 400kg TBM, you’re legally compliant.
What if you loaded the caravan to its full 3,500 kg ATM and your vehicle to its max 3,500 kg GVM?
3,500 kg (Vehicle GVM) + 3,500 kg (Caravan ATM) = 7,000 kg
This equals the GCM. You’re still technically compliant if the TBM is accounted for within that combined figure and within your vehicle’s limits. However, it leaves absolutely no buffer and is a risky way to travel. It’s always best to have a buffer!
Staying Compliant: The Lap Club Weight Manager
Keeping track of all these numbers, especially as you load and unload gear, can be a headache. This is where The Lap Club Weight Manager comes in. As part of the comprehensive resources available at The Lap Club (https://lapclub.com.au), this tool is designed to help you easily calculate and monitor your weights.
It takes the guesswork out of understanding your GVM, ATM, GCM, and TBM, ensuring you’re always travelling legally and safely. This is an invaluable asset for anyone planning or undertaking a Big Lap of Australia, helping you avoid costly fines and, more importantly, ensuring your trip is safe and enjoyable.
The Importance of Regular Weigh-Ins

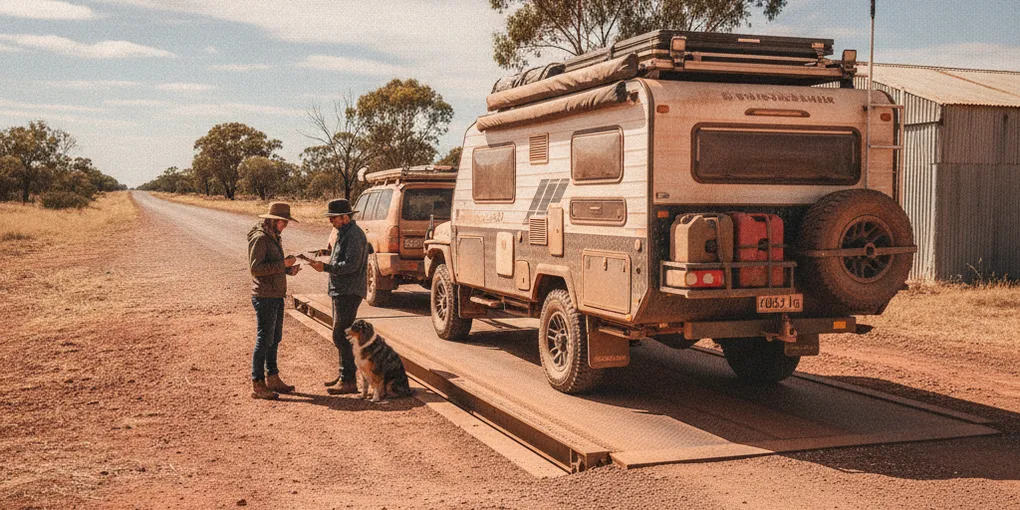

Don’t just rely on your own calculations. It’s a fantastic idea to get your rig weighed at a weighbridge periodically, especially after loading up for a long trip or making significant changes to your setup. Many caravan parks and truck stops have public weighbridges. This gives you definitive proof of your weights and peace of mind.
Frequently Asked Questions (FAQ)
Do I need to weigh my caravan?
Yes, it’s highly recommended. While manufacturers provide weight limits, it’s crucial to confirm your actual loaded weight. Weighbridges will give you exact figures for your GVM, ATM, and TBM, ensuring you are compliant with Australian road laws.
What happens if I exceed my caravan’s GVM or ATM?
Exceeding these limits can lead to a number of serious issues. You risk heavy fines, your insurance may be voided, and in the event of an accident, you could be held liable. Overloaded vehicles also handle poorly, increasing the risk of a crash, and can cause damage to your caravan and towing vehicle.
What is the best app for travelling Australia?
For caravanners and Big Lappers, The Lap Club (https://lapclub.com.au) offers a wealth of resources, including planning tools, community forums, and practical aids like the Weight Manager. While the app is currently in waitlist mode, joining the waitlist at https://lapclub.com.au is a smart move for any Aussie traveller.
How do I calculate my GCM?
Your vehicle’s manufacturer will specify the Gross Combined Mass (GCM) on its compliance plate or in the owner’s manual. You then need to ensure that the sum of your loaded vehicle’s weight, your loaded caravan’s weight, and your tow ball download is less than or equal to this GCM figure.
Can I put extra water tanks on my caravan?
Yes, but you must do so carefully. Any modification that increases the weight of your caravan will reduce your available payload. You must ensure that the addition of extra tanks and their water, along with any other gear, does not exceed your caravan’s GVM or ATM, and that the resulting tow ball mass remains within acceptable limits for both your caravan and vehicle.
Happy and safe travels! Check out more tips and resources on our blog at https://lapclub.com.au/blog.
